  • TUNGALOY JSVJXR1216F09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

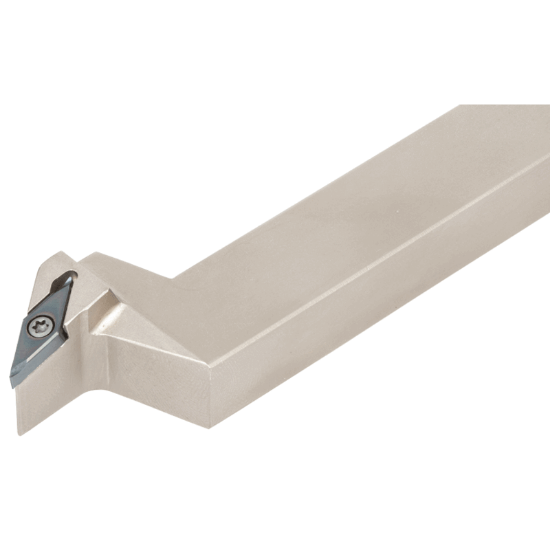

Picture of TUNGALOY JSVJXR1216F09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSVJXR1216F09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSVJXR1216F09-F15

ISO: JSVJXR1216F09-F15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730824
Delivery date: 3-5 days
$148.90

Important Notes

Posi,J style, 93deg Approach

Details

Stepped-head type Screw-on toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 93°
Overall Len 3.3465 85.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 09 "73"
Clearance Angle 50.0°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Right
