  • TUNGALOY JSVJXR107-F10 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

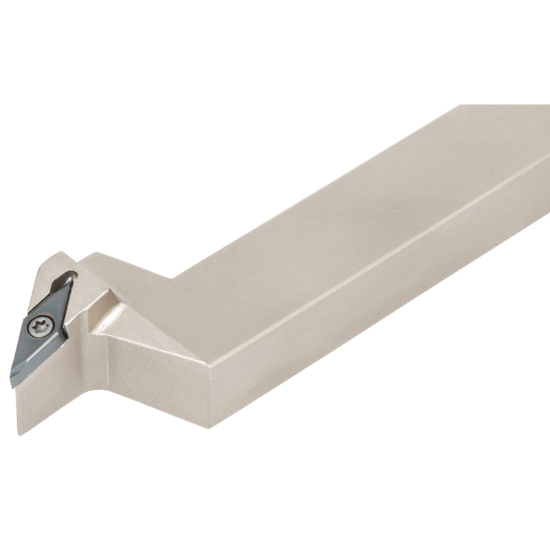

Picture of TUNGALOY JSVJXR107-F10 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY JSVJXR107-F10 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: JSVJXR107-F10

ISO: JSVJXR107-F10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735026
Delivery date: 3-5 days
$155.30

Important Notes

Posi,J style, 93deg Approach

Details

Stepped-head type Screw-on toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Clearance Angle 50.0°
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 09 "73"
Lead Angle 93°
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
