  • TUNGALOY JSVJXR1016X09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

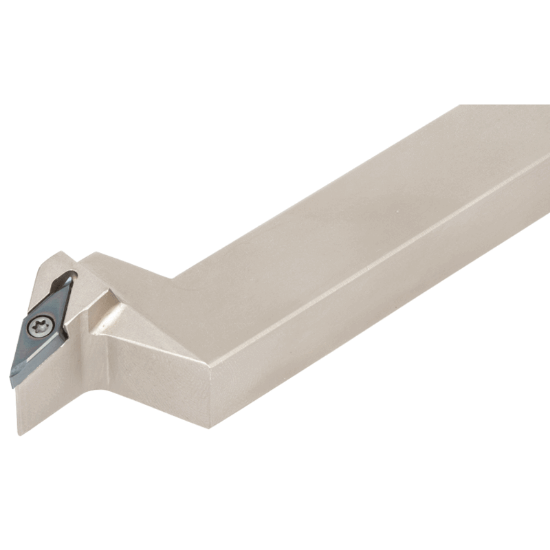

Picture of TUNGALOY JSVJXR1016X09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSVJXR1016X09-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSVJXR1016X09-F15

ISO: JSVJXR1016X09-F15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730825
Delivery date: 3-5 days
$139.75

Important Notes

Posi,J style, 93deg Approach

Details

Stepped-head type Screw-on toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Clearance Angle 50.0°
Tool Material Steel
Overall Len 4.7244 120.00MM
Insert Size Ic 09 "73"
Lead Angle 93°
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
