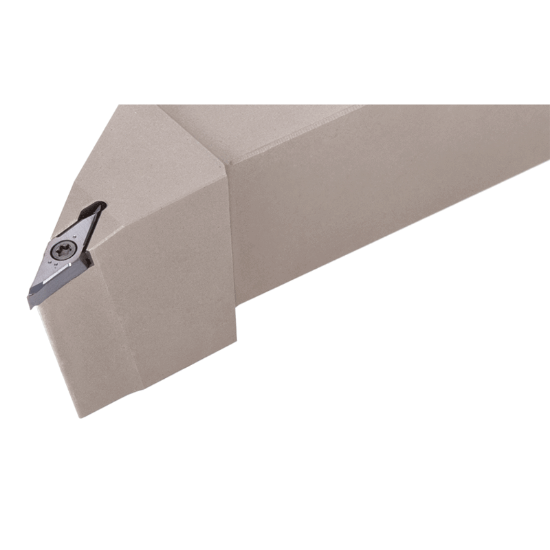

Picture of TUNGALOY JSVJXL167 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 1.000 Shank

TUNGALOY JSVJXL167 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 1.000 Shank

ANSI: JSVJXL167

ISO: JSVJXL167

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776361
Delivery date: 3-5 days
$150.75

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on toolholder with 93deg approach angle for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 09 "73"
Clearance Angle 50.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Left
