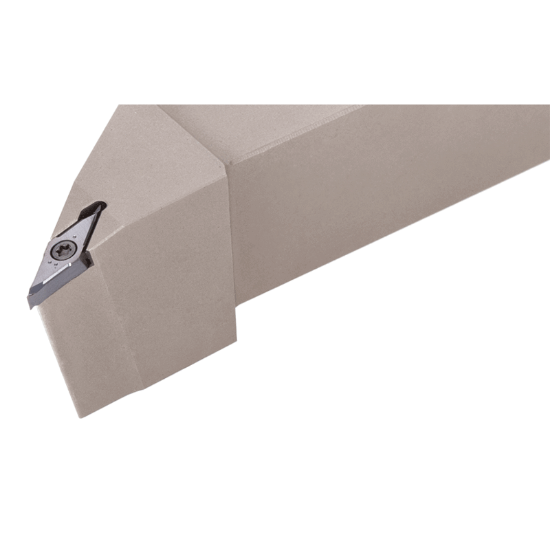

Picture of TUNGALOY JSVJXL127 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY JSVJXL127 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: JSVJXL127

ISO: JSVJXL127

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776359
Delivery date: 3-5 days
$127.90

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on toolholder with 93deg approach angle for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Clearance Angle 50.0°
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 09 "73"
Lead Angle 93°
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Left
