  • TUNGALOY JSVJBR1620X11-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.787 Shank

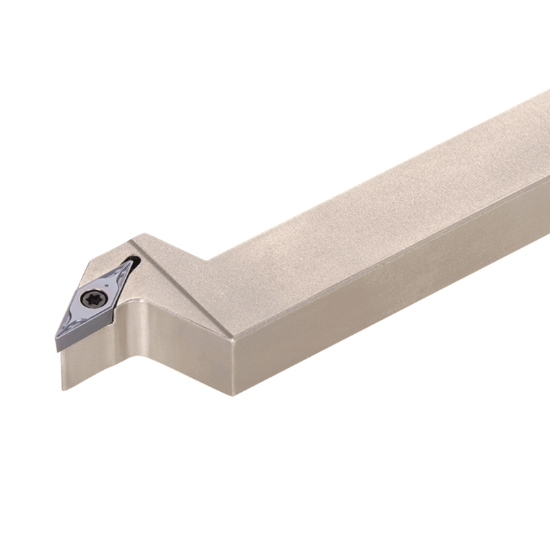

Picture of TUNGALOY JSVJBR1620X11-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.787 Shank

TUNGALOY JSVJBR1620X11-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.787 Shank

ANSI: JSVJBR1620X11-F15

ISO: JSVJBR1620X11-F15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735037
Delivery date: 3-5 days
$155.30

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on stepped-head toolholder with 95deg approach angle for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 93°
Clearance Angle 50.0°
Shank/Pilot Dia 0.7874 20.00MM
Insert Size Ic 11 "22"
Tool Material Steel
Overall Len 4.7244 120.00MM
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Insert Style VB
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Right
