  • TUNGALOY JSVJBR1616H11 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

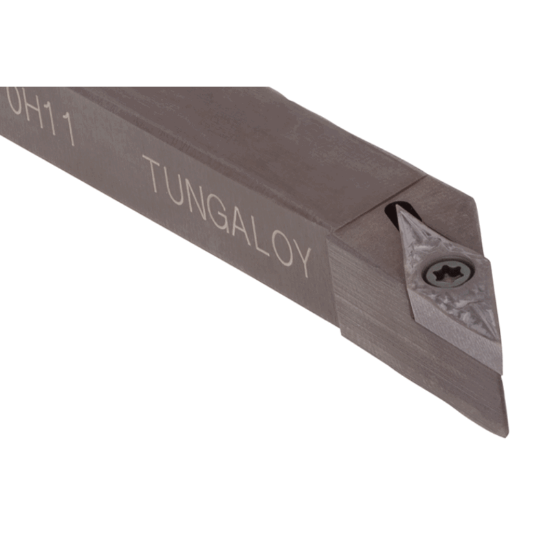

Picture of TUNGALOY JSVJBR1616H11 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSVJBR1616H11 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSVJBR1616H11

ISO: JSVJBR1616H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6811222
Delivery date: 3-5 days
$101.30

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Made In USA No
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Clearance Angle 50.0°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9370 100.00MM
Lead Angle 93°
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VB
