  • TUNGALOY JSVJBR1216X11-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

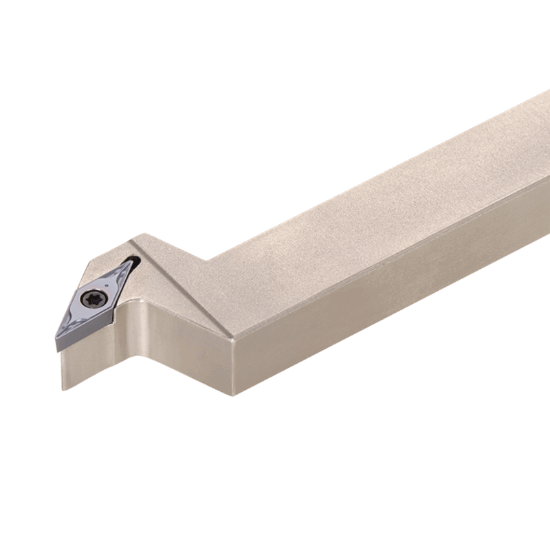

Picture of TUNGALOY JSVJBR1216X11-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSVJBR1216X11-F15 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSVJBR1216X11-F15

ISO: JSVJBR1216X11-F15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735036
Delivery date: 3-5 days
$148.90

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on stepped-head toolholder with 95deg approach angle for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning
Package Size 1
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Lead Angle 93°
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Insert Style VB
