  • TUNGALOY JSVJBL1212H11 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

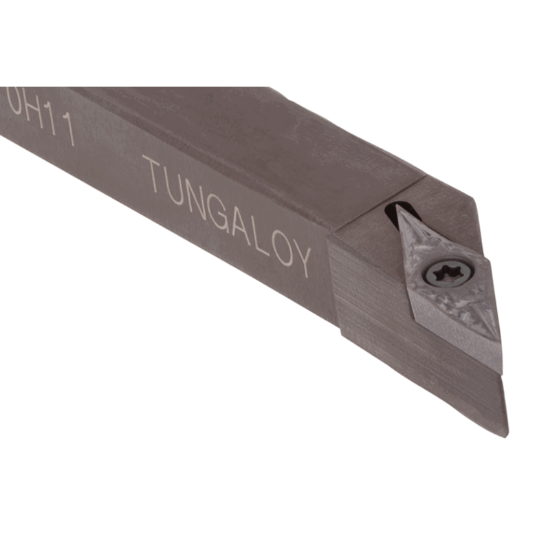

Picture of TUNGALOY JSVJBL1212H11 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JSVJBL1212H11 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JSVJBL1212H11

ISO: JSVJBL1212H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6811218
Delivery date: 3-5 days
$96.50

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 50.0°
Machine Side Connection Size 0.4724 12.00MM
Lead Angle 93°
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9370 100.00MM
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
