  • TUNGALOY JSVJ2XR1616X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

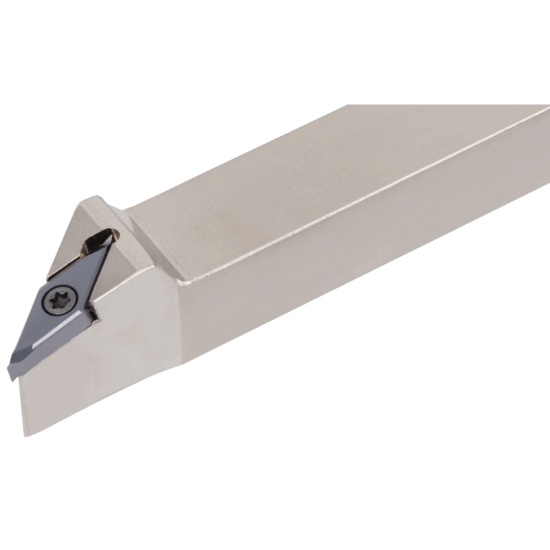

Picture of TUNGALOY JSVJ2XR1616X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSVJ2XR1616X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSVJ2XR1616X09

ISO: JSVJ2XR1616X09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6731257
Delivery date: 3-5 days
$117.45

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 09 "73"
Clearance Angle 50.0°
Lead Angle 93°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Right
