  • TUNGALOY JSVJ2XR1212X09-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

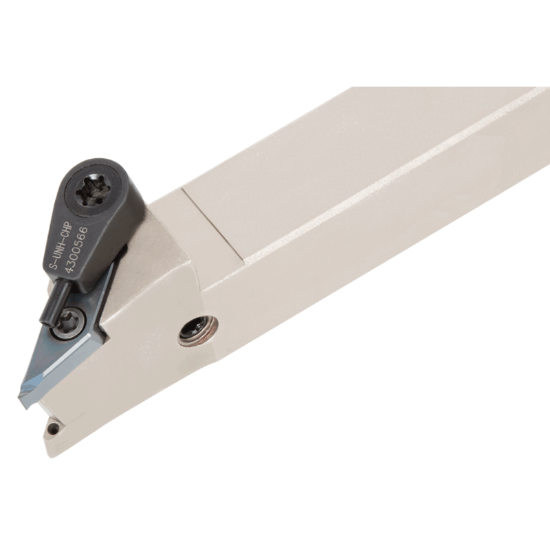

Picture of TUNGALOY JSVJ2XR1212X09-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JSVJ2XR1212X09-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JSVJ2XR1212X09-CHP

ISO: JSVJ2XR1212X09-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6766284
Delivery date: 3-5 days
$274.95

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholders for VXGU inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Clearance Angle 50.0°
Insert Size Ic 09 "73"
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Right
