  • TUNGALOY JSVJ2XR087X-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

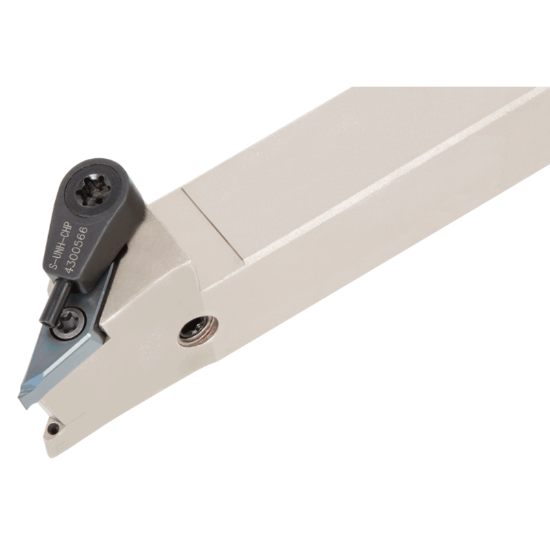

Picture of TUNGALOY JSVJ2XR087X-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JSVJ2XR087X-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JSVJ2XR087X-CHP

ISO: JSVJ2XR087X-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776485
Delivery date: 3-5 days
$274.95

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholders for VXGU inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 09 "73"
Clearance Angle 50.0°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.7500 120.65MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Right
