  • TUNGALOY JSVJ2XL087-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

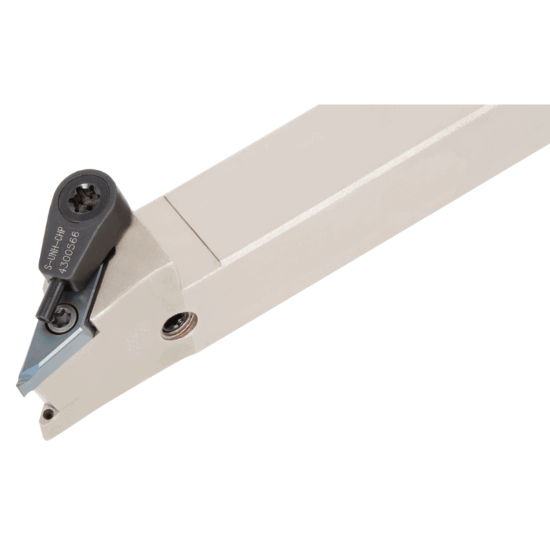

Picture of TUNGALOY JSVJ2XL087-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JSVJ2XL087-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JSVJ2XL087-CHP

ISO: JSVJ2XL087-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6737426
Delivery date: 3-5 days
$274.95

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder for VXGU inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 09 "73"
Lead Angle 93°
Machine Side Connection Size 0.5000 12.70MM
Clearance Angle 50.0°
Overall Len 3.3440 84.94MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
