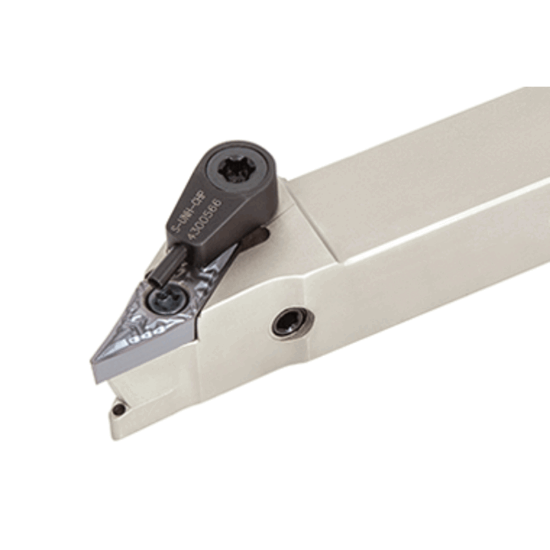

TUNGALOY JSVJ2BR1616X11-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSVJ2BR1616X11-CHP

ISO: JSVJ2BR1616X11-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6766290
Delivery date: 3-5 days
$288.65

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholders for positive 35deg rhombic inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Application Swiss, Ext.Turning
Shipping State Illinois
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Clearance Angle 50.0°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Lead Angle 93°
Cutting & Machining Properties
Insert Style VB
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
