  • TUNGALOY JSVJ2BL1212X11 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

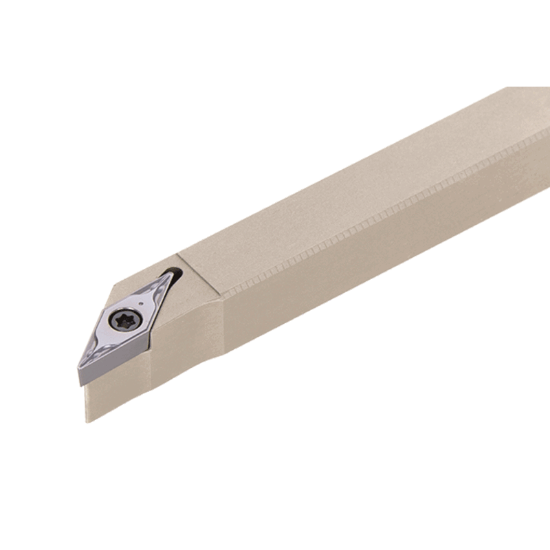

Picture of TUNGALOY JSVJ2BL1212X11 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JSVJ2BL1212X11 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JSVJ2BL1212X11

ISO: JSVJ2BL1212X11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6716219
Delivery date: 3-5 days
$96.50

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder with 93deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Shipping State Illinois
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Clearance Angle 50.0°
Machine Side Connection Size 0.4724 12.00MM
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Style VB
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
