  • TUNGALOY JSVABR1010K11 Swiss Stick Tool 35.0° Insert Posi,A style, 91deg Approach , Steel Square 0.393 Shank

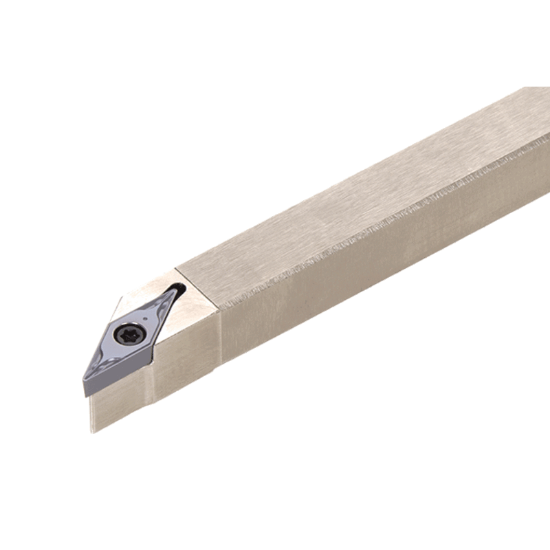

Picture of TUNGALOY JSVABR1010K11 Swiss Stick Tool 35.0° Insert Posi,A style, 91deg Approach , Steel Square 0.393 Shank

TUNGALOY JSVABR1010K11 Swiss Stick Tool 35.0° Insert Posi,A style, 91deg Approach , Steel Square 0.393 Shank

ANSI: JSVABR1010K11

ISO: JSVABR1010K11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Posi,A style, 91deg Approach

Details

No-offset Screw-on toolholder with 91deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Lead Angle 91°
Clearance Angle 50.0°
Overall Len 4.9213 125.00MM
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VB
