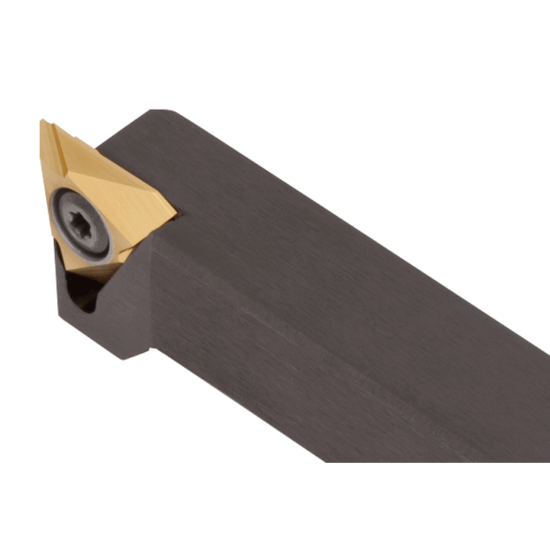

Picture of TUNGALOY JSTBR1010X3 On Edge Back Turning,Grooving Stick Tool Steel Square 0.393 Shank

TUNGALOY JSTBR1010X3 On Edge Back Turning,Grooving Stick Tool Steel Square 0.393 Shank

ANSI: JSTBR1010X3

ISO: JSTBR1010X3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6716232
Delivery date: 3-5 days
$97.80

Details

No-offset Screw-on toolholder for back turning with JTBR/L3** inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Turning, Ext.Back Turning, Ext.Grooving, Swiss
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Insert Size Ic 3
Tool Material Steel
Overall Len 4.7244 120.00MM
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style JT
