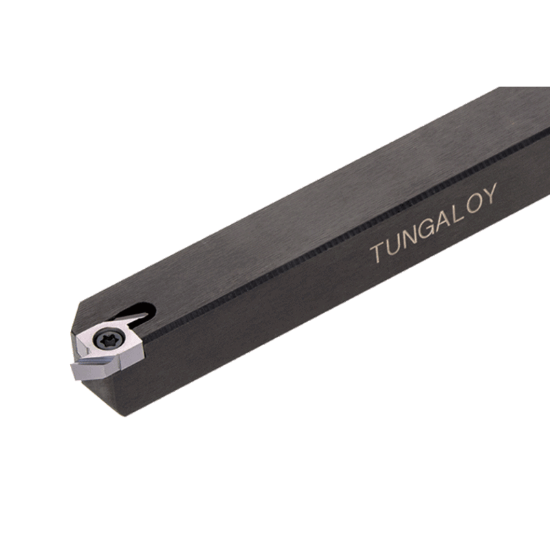

Picture of TUNGALOY JSEGL1010K10 Swiss Stick Tool 60.0° Insert Steel Square 0.393 Shank

TUNGALOY JSEGL1010K10 Swiss Stick Tool 60.0° Insert Steel Square 0.393 Shank

ANSI: JSEGL1010K10

ISO: JSEGL1010K10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804869
Delivery date: 3-5 days
$121.75

Details

Screw-on toolholder for back turning with J10ER/L** inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Insert Type Positive
Application Ext.Turning, Ext.Back Turning, Swiss
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Insert Size Ic EL
Overall Len 4.9213 125.00MM
Shank/Pilot Dia 0.3937 10.00MM
Lead Angle 60° B
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Insert Style 10
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape Z Shape
