  • TUNGALOY JSDNCN1212X07 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.472 Shank

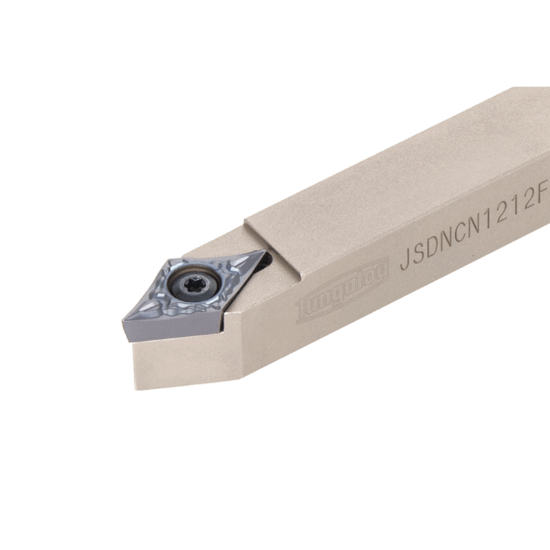

Picture of TUNGALOY JSDNCN1212X07 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.472 Shank

TUNGALOY JSDNCN1212X07 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.472 Shank

ANSI: JSDNCN1212X07

ISO: JSDNCN1212X07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733986
Delivery date: 3-5 days
$96.50

Important Notes

Posi,N style, 62.5deg Approach

Details

Screw-on clamp toolholder with 62.5deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Insert Application General Purpose
Application Swiss, Ext.Turning
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 07 "21"
Lead Angle 62.5°
Machine Side Connection Size 0.4724 12.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Clearance Angle 60.0°
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Insert Style DC
Hand R/L Neutral
