  • TUNGALOY JSDNCN103 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.625 Shank

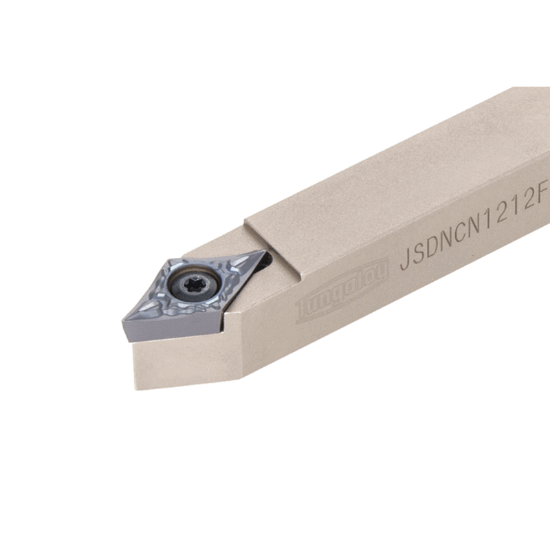

Picture of TUNGALOY JSDNCN103 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.625 Shank

TUNGALOY JSDNCN103 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.625 Shank

ANSI: JSDNCN103

ISO: JSDNCN103

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6708777
Delivery date: 3-5 days
$99.60

Important Notes

Posi,N style, 62.5deg Approach

Details

Screw-on clamp toolholder with 62.5deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Swiss, Ext.Turning
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Clearance Angle 60.0°
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11 "32"
Lead Angle 62.5°
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
