  • TUNGALOY JSDJXR1620X07-F15 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.787 Shank

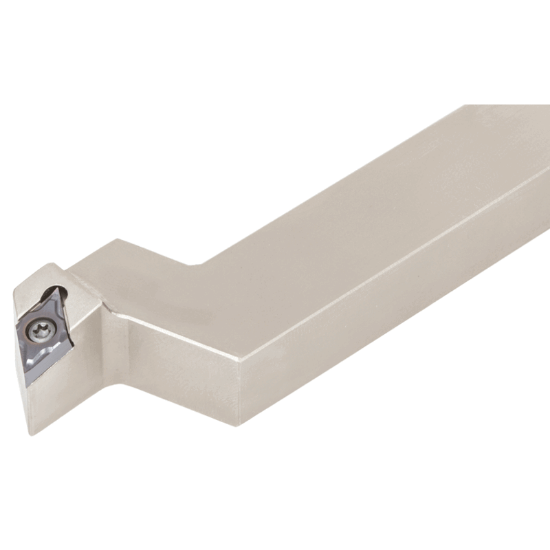

Picture of TUNGALOY JSDJXR1620X07-F15 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.787 Shank

TUNGALOY JSDJXR1620X07-F15 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.787 Shank

ANSI: JSDJXR1620X07-F15

ISO: JSDJXR1620X07-F15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730823
Delivery date: 3-5 days
$155.30

Important Notes

Posi,J style, 93deg Approach

Details

Stepped-head type Screw-on toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Application Ext.Turning
Package Size 1
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Insert Size Ic 07 "21"
Shank/Pilot Dia 0.7874 20.00MM
Lead Angle 93°
Machine Side Connection Size 0.7874 20.00MM
Clearance Angle 30.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Hand R/L Right
Insert Style DC
