  • TUNGALOY JSDJCR1616H11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

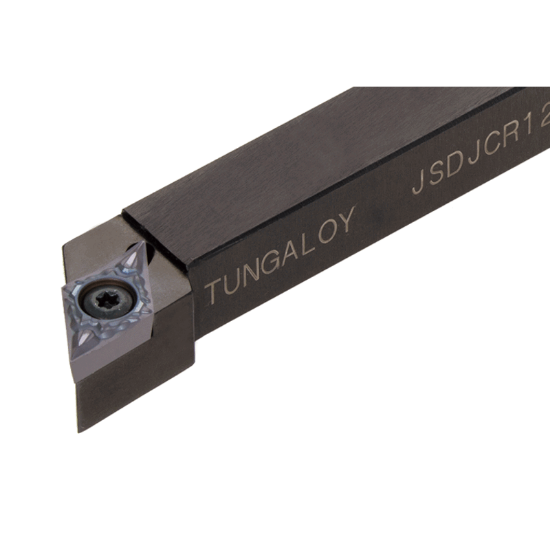

Picture of TUNGALOY JSDJCR1616H11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSDJCR1616H11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSDJCR1616H11

ISO: JSDJCR1616H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804861
Delivery date: 3-5 days
$99.60

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert Type Positive
Application Ext.Turning
Insert/Tool Tool
Dimensional Specifications
Overall Len 3.9370 100.00MM
Insert Size Ic 11 "32"
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Lead Angle 93°
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
