  • TUNGALOY JSDJCR1216X07-F15 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

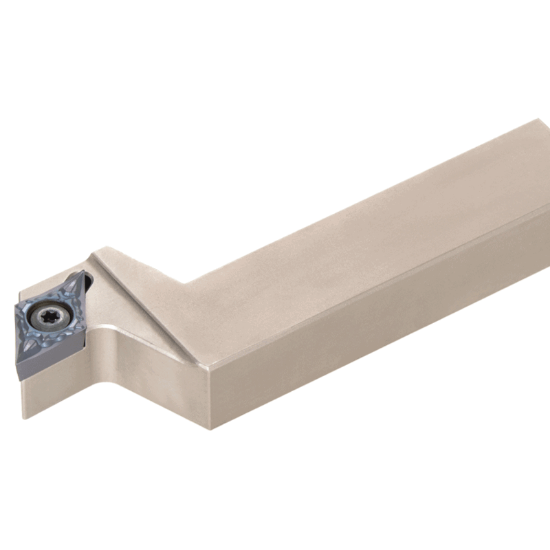

Picture of TUNGALOY JSDJCR1216X07-F15 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSDJCR1216X07-F15 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSDJCR1216X07-F15

ISO: JSDJCR1216X07-F15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735031
Delivery date: 3-5 days
$148.90

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on stepped-head toolholder with 93deg approach angle for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Lead Angle 93°
Insert Size Ic 07 "21"
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Clearance Angle 30.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Inter/Extern External
Insert Style DC
