  • TUNGALOY JSDJCL0808H07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.315 Shank

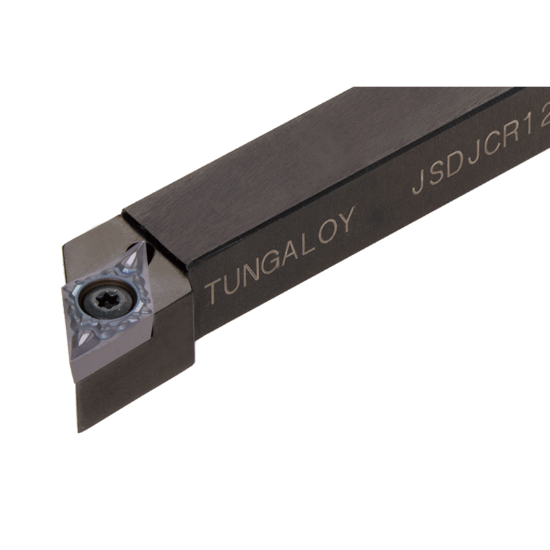

Picture of TUNGALOY JSDJCL0808H07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.315 Shank

TUNGALOY JSDJCL0808H07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.315 Shank

ANSI: JSDJCL0808H07

ISO: JSDJCL0808H07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6811209
Delivery date: 3-5 days
$90.45

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning
Dimensional Specifications
Overall Len 3.9370 100.00MM
Lead Angle 93°
Machine Side Connection Size 0.3150 8.00MM
Shank/Pilot Dia 0.3150 8.00MM
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 07 "21"
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
