  • TUNGALOY JSDJ2XR1616X07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

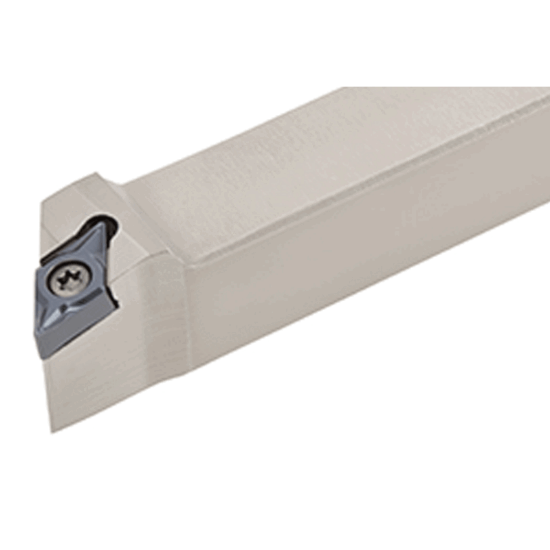

Picture of TUNGALOY JSDJ2XR1616X07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSDJ2XR1616X07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSDJ2XR1616X07

ISO: JSDJ2XR1616X07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712872
Delivery date: 3-5 days
$117.45

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Stick Tool
Insert Size Ic 07 "21"
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Lead Angle 93°
Clearance Angle 30.0°
Tool Material Steel
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
