  • TUNGALOY JSDJ2XR1212F07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

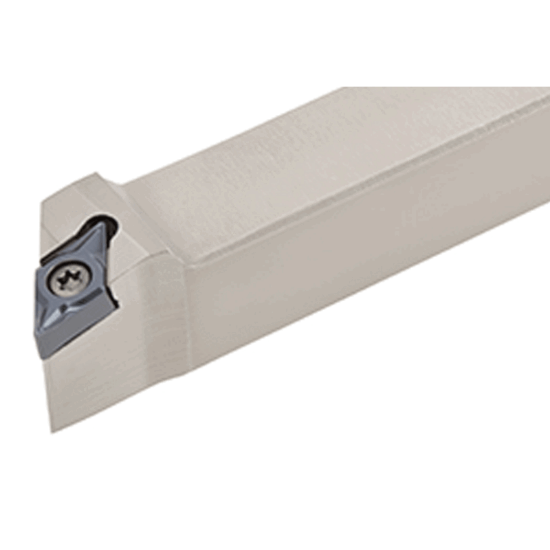

Picture of TUNGALOY JSDJ2XR1212F07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JSDJ2XR1212F07 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JSDJ2XR1212F07

ISO: JSDJ2XR1212F07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712868
Delivery date: 3-5 days
$96.50

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 93°
Machine Side Connection Type Stick Tool
Clearance Angle 30.0°
Tool Material Steel
Insert Size Ic 07 "21"
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.3465 85.00MM
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
Hand R/L Right
