  • TUNGALOY JSDJ2XR102X-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

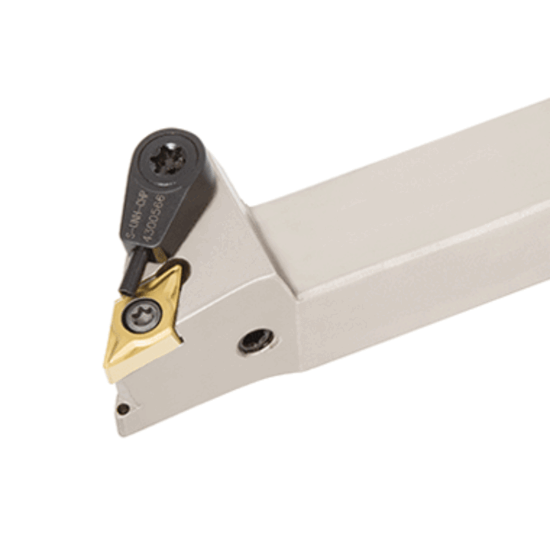

Picture of TUNGALOY JSDJ2XR102X-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY JSDJ2XR102X-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: JSDJ2XR102X-CHP

ISO: JSDJ2XR102X-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776484
Delivery date: 3-5 days
$334.65

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholders for DXGU inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 07 "21"
Machine Side Connection Size 0.6250 15.88MM
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 93°
Overall Len 4.7240 119.99MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Right
