  • TUNGALOY JSDJ2XL102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

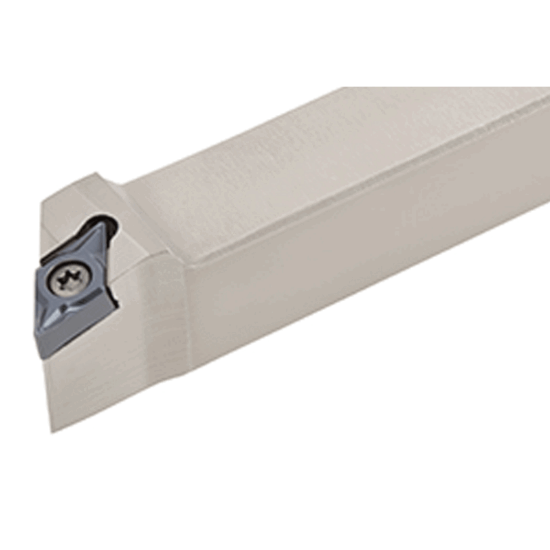

Picture of TUNGALOY JSDJ2XL102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY JSDJ2XL102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: JSDJ2XL102

ISO: JSDJ2XL102

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712877
Delivery date: 3-5 days
$117.45

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning, Swiss
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 07 "21"
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.7500 120.65MM
Lead Angle 93°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Left
