  • TUNGALOY JSDJ2CR103X-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

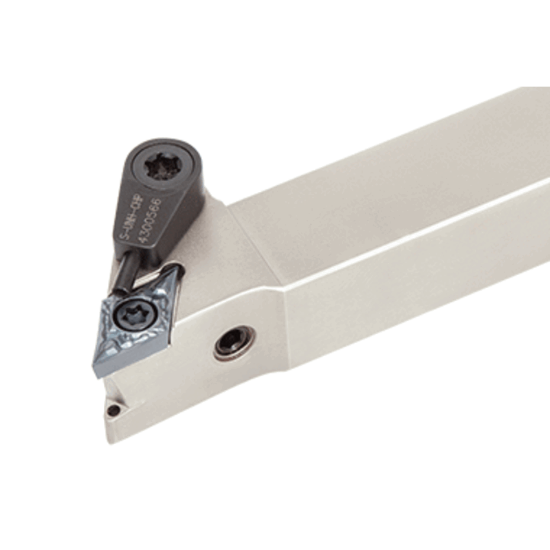

Picture of TUNGALOY JSDJ2CR103X-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY JSDJ2CR103X-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: JSDJ2CR103X-CHP

ISO: JSDJ2CR103X-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776490
Delivery date: 3-5 days
$283.90

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholders for positive 55deg rhombic inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Clearance Angle 30.0°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 93°
Overall Len 4.7240 119.99MM
Insert Size Ic 11 "32"
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style DC
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
