  • TUNGALOY JSDJ2CL1212F07-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

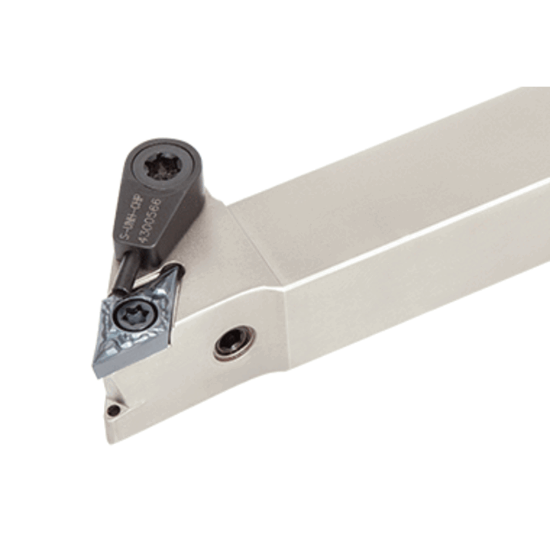

Picture of TUNGALOY JSDJ2CL1212F07-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JSDJ2CL1212F07-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JSDJ2CL1212F07-CHP

ISO: JSDJ2CL1212F07-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6728407
Delivery date: 3-5 days
$274.95

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder for positive 55deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning, Swiss
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.3465 85.00MM
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 07 "21"
Clearance Angle 30.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Inter/Extern External
Insert Style DC
