  • TUNGALOY JSDJ2CL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

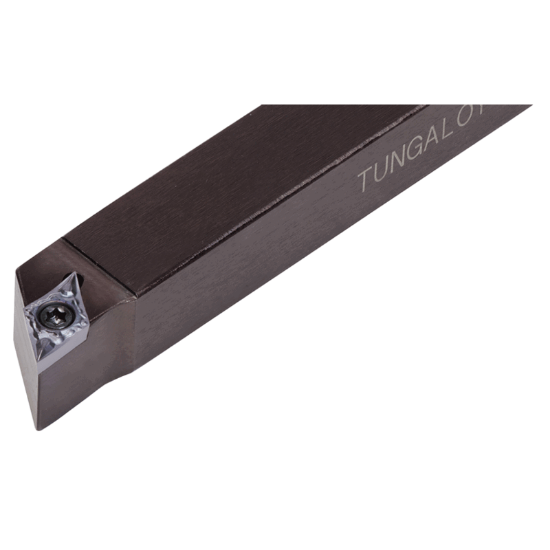

Picture of TUNGALOY JSDJ2CL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JSDJ2CL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JSDJ2CL082

ISO: JSDJ2CL082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6708770
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 07 "21"
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Lead Angle 93°
Clearance Angle 30.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Insert Style DC
