  • TUNGALOY JSDJ2CL082-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

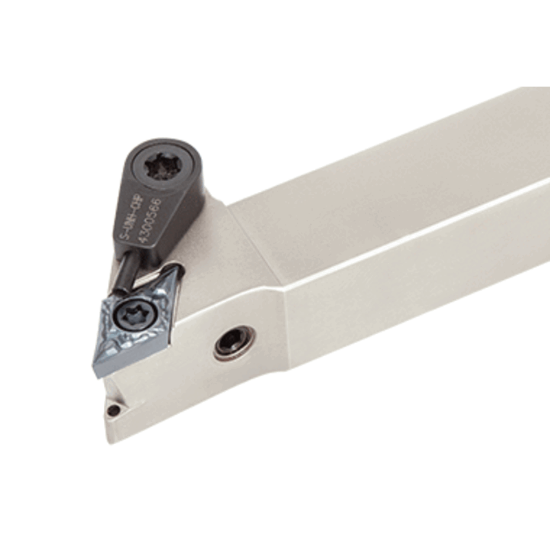

Picture of TUNGALOY JSDJ2CL082-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JSDJ2CL082-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JSDJ2CL082-CHP

ISO: JSDJ2CL082-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730838
Delivery date: 3-5 days
$274.95

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder for positive 55deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 07 "21"
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.3440 84.94MM
Lead Angle 93°
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Left
Inter/Extern External
