  • TUNGALOY JSCLCR1620X09-F15 Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.787 Shank

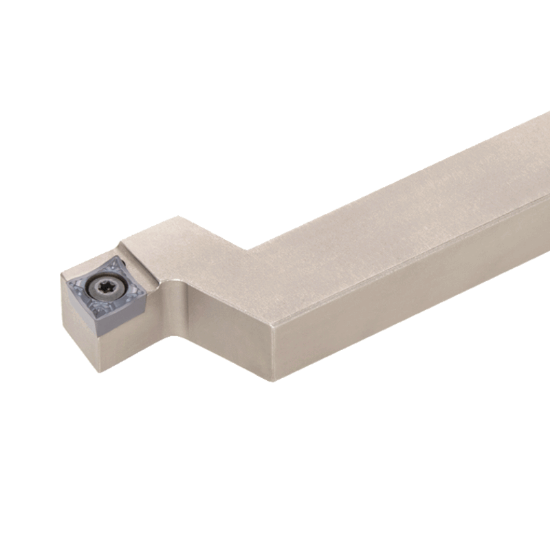

Picture of TUNGALOY JSCLCR1620X09-F15 Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.787 Shank

TUNGALOY JSCLCR1620X09-F15 Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.787 Shank

ANSI: JSCLCR1620X09-F15

ISO: JSCLCR1620X09-F15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735039
Delivery date: 3-5 days
$155.30

Important Notes

Posi,L style, 95deg Approach

Details

Screw-on stepped-head toolholder with 95deg approach angle for positive 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Lead Angle 95°
Shank/Pilot Dia 0.7874 20.00MM
Insert Size Ic 09 "32"
Cutting & Machining Properties
Insert Style CC
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
