  • TUNGALOY JSCL2CR1212X09-CHP Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

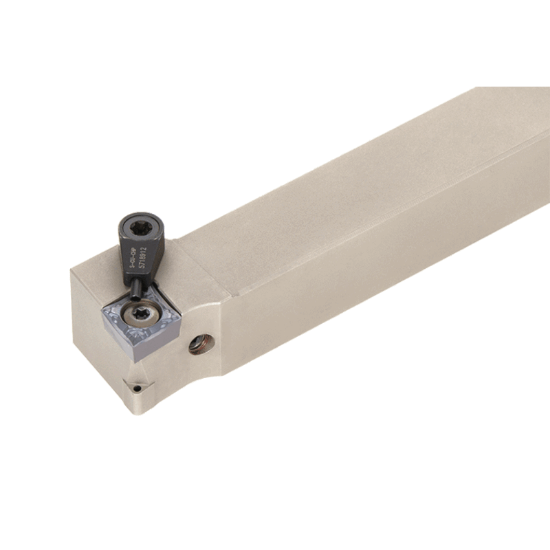

Picture of TUNGALOY JSCL2CR1212X09-CHP Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

TUNGALOY JSCL2CR1212X09-CHP Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

ANSI: JSCL2CR1212X09-CHP

ISO: JSCL2CR1212X09-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6766286
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholder for positive 80deg rhombic inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 4.7244 120.00MM
Lead Angle 95°
Insert Size Ic 09 "32"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.4724 12.00MM
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
Inter/Extern External
Hand R/L Right
