  • TUNGALOY JSCL2CR082 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.500 Shank

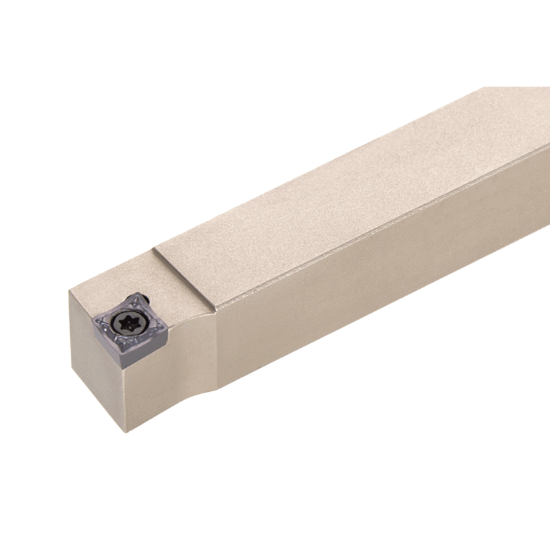

Picture of TUNGALOY JSCL2CR082 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.500 Shank

TUNGALOY JSCL2CR082 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.500 Shank

ANSI: JSCL2CR082

ISO: JSCL2CR082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6708758
Delivery date: 3-5 days
$96.50

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholder with 95deg approach angle, for positive 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Dimensional Specifications
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 06 "21"
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CC
Inter/Extern External
