  • TUNGALOY JPWL2XR1616X04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

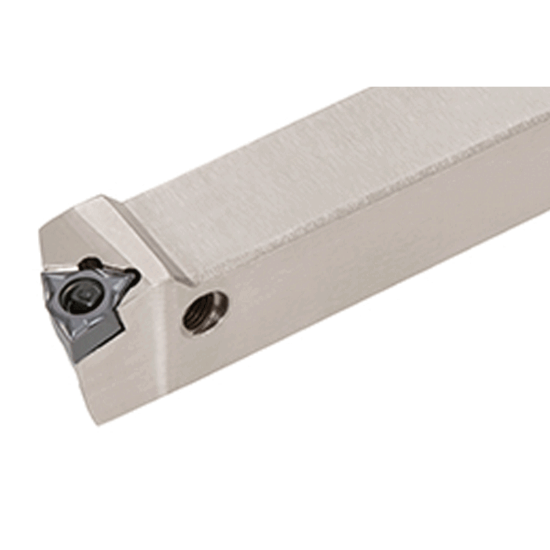

Picture of TUNGALOY JPWL2XR1616X04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY JPWL2XR1616X04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: JPWL2XR1616X04

ISO: JPWL2XR1616X04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712858
Delivery date: 3-5 days
$117.45

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Back clamp toolholder with 95deg approach angle, for WXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Overall Len 4.7244 120.00MM
Insert Size Ic 04 "22"
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WX
