  • TUNGALOY JPWL2XR1212F04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

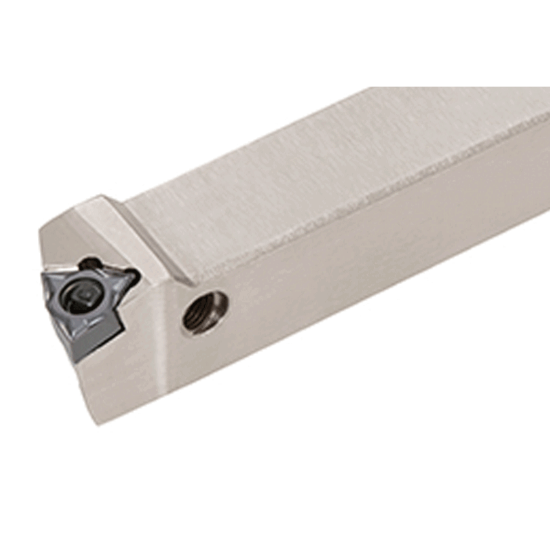

Picture of TUNGALOY JPWL2XR1212F04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

TUNGALOY JPWL2XR1212F04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

ANSI: JPWL2XR1212F04

ISO: JPWL2XR1212F04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712854
Delivery date: 3-5 days
$116.05

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Back clamp toolholder with 95deg approach angle, for WXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.3465 85.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Insert Size Ic 04 "22"
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WX
Inter/Extern External
