  • TUNGALOY JPWL2XL1616X04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

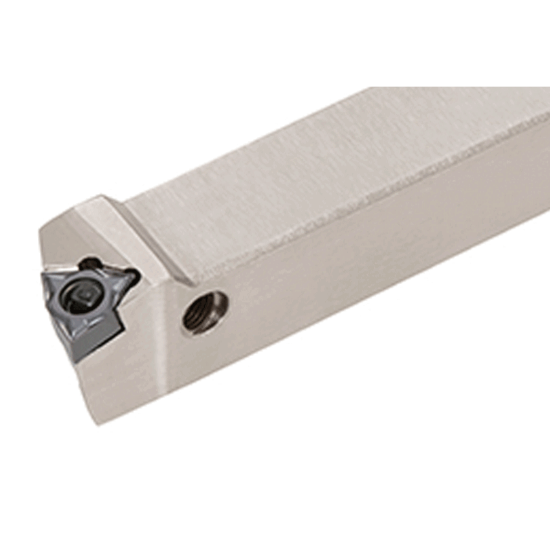

Picture of TUNGALOY JPWL2XL1616X04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY JPWL2XL1616X04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: JPWL2XL1616X04

ISO: JPWL2XL1616X04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712857
Delivery date: 3-5 days
$117.45

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Back clamp toolholder with 95deg approach angle, for WXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Insert Size Ic 04 "22"
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WX
