  • TUNGALOY JPVJ2XR1212X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

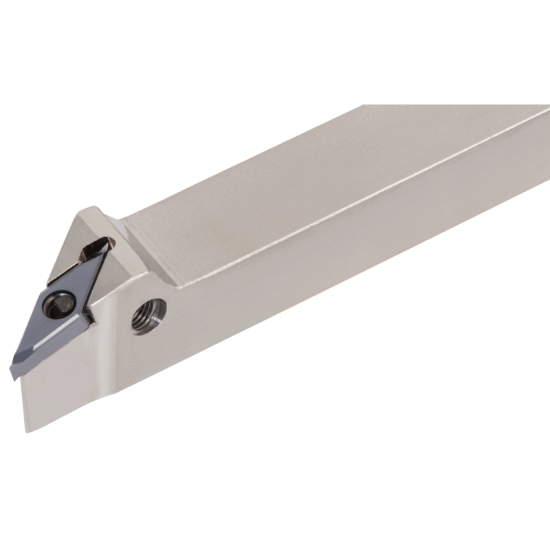

Picture of TUNGALOY JPVJ2XR1212X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JPVJ2XR1212X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JPVJ2XR1212X09

ISO: JPVJ2XR1212X09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735004
Delivery date: 3-5 days
$116.05

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.4724 12.00MM
Clearance Angle 50.0°
Machine Side Connection Size 0.4724 12.00MM
Tool Material Steel
Overall Len 4.7244 120.00MM
Machine Side Connection Type Stick Tool
Insert Size Ic 09 "73"
Lead Angle 93°
Cutting & Machining Properties
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
