  • TUNGALOY JPVJ2XR107 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

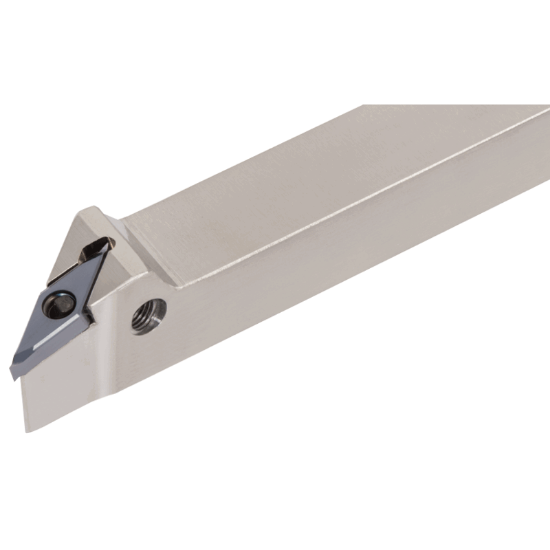

Picture of TUNGALOY JPVJ2XR107 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY JPVJ2XR107 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: JPVJ2XR107

ISO: JPVJ2XR107

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735012
Delivery date: 3-5 days
$117.45

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 50.0°
Insert Size Ic 09 "73"
Lead Angle 93°
Overall Len 4.7240 119.99MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
