  • TUNGALOY JPVJ2XR1010X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.393 Shank

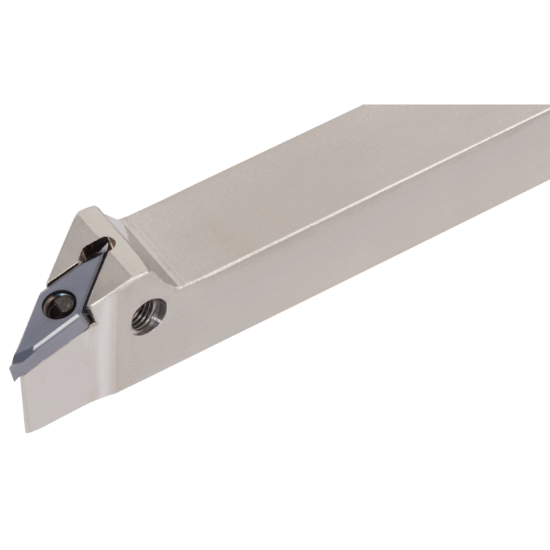

Picture of TUNGALOY JPVJ2XR1010X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.393 Shank

TUNGALOY JPVJ2XR1010X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.393 Shank

ANSI: JPVJ2XR1010X09

ISO: JPVJ2XR1010X09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735002
Delivery date: 3-5 days
$110.60

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Overall Len 4.7244 120.00MM
Insert Size Ic 09 "73"
Clearance Angle 50.0°
Lead Angle 93°
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Right
