  • TUNGALOY JPVJ2XL1212F09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

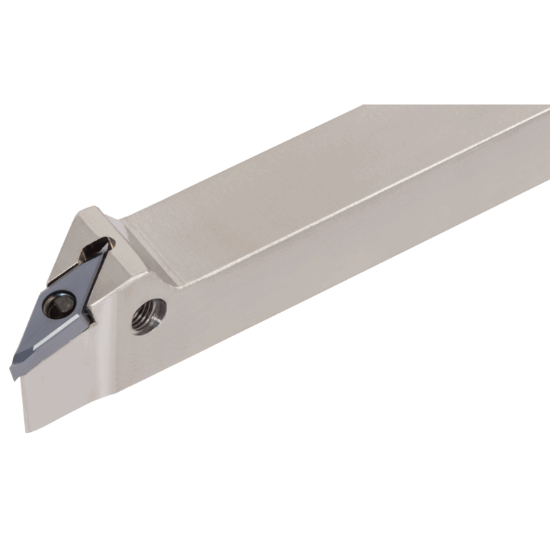

Picture of TUNGALOY JPVJ2XL1212F09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JPVJ2XL1212F09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JPVJ2XL1212F09

ISO: JPVJ2XL1212F09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735007
Delivery date: 3-5 days
$116.05

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.3465 85.00MM
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 09 "73"
Clearance Angle 50.0°
Cutting & Machining Properties
Hand R/L Left
Insert Style VX
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
