  • TUNGALOY JPVJ2XL087 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

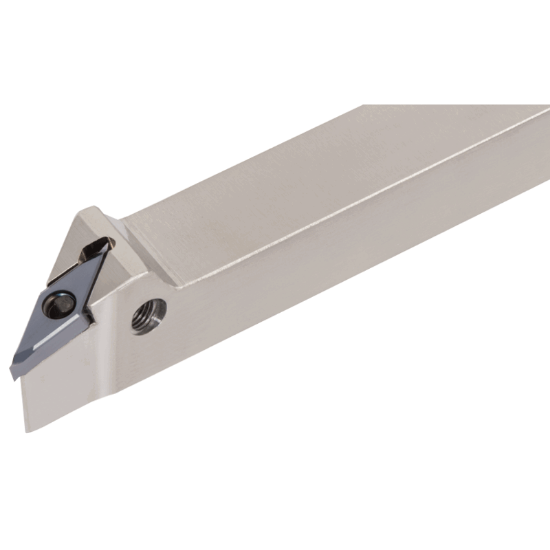

Picture of TUNGALOY JPVJ2XL087 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JPVJ2XL087 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JPVJ2XL087

ISO: JPVJ2XL087

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735014
Delivery date: 3-5 days
$116.05

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.7500 120.65MM
Insert Size Ic 09 "73"
Lead Angle 93°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
