  • TUNGALOY JPDJ2XR102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

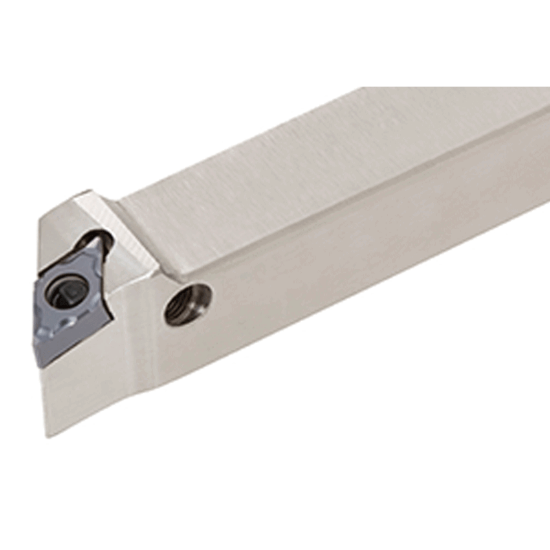

Picture of TUNGALOY JPDJ2XR102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY JPDJ2XR102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: JPDJ2XR102

ISO: JPDJ2XR102

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712892
Delivery date: 3-5 days
$117.45

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Swiss, Ext.Turning
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Lead Angle 93°
Overall Len 4.7240 119.99MM
Insert Size Ic 07 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6250 15.88MM
Clearance Angle 30.0°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DX
Inter/Extern External
Hand R/L Right
