  • TUNGALOY JPDJ2XR082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

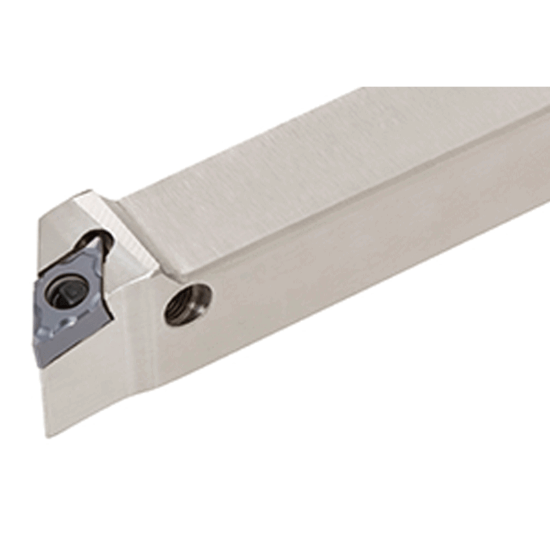

Picture of TUNGALOY JPDJ2XR082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JPDJ2XR082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JPDJ2XR082

ISO: JPDJ2XR082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712890
Delivery date: 3-5 days
$116.05

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 30.0°
Lead Angle 93°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.7500 120.65MM
Insert Size Ic 07 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Right
Insert Style DX
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
