  • TUNGALOY JPDJ2XL1616X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

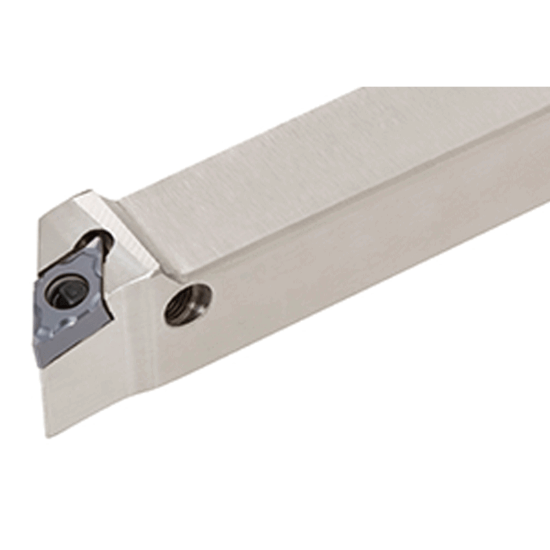

Picture of TUNGALOY JPDJ2XL1616X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JPDJ2XL1616X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JPDJ2XL1616X07

ISO: JPDJ2XL1616X07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712885
Delivery date: 3-5 days
$117.45

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 07 "22"
Lead Angle 93°
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Style DX
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
