  • TUNGALOY JPDJ2XL1212X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

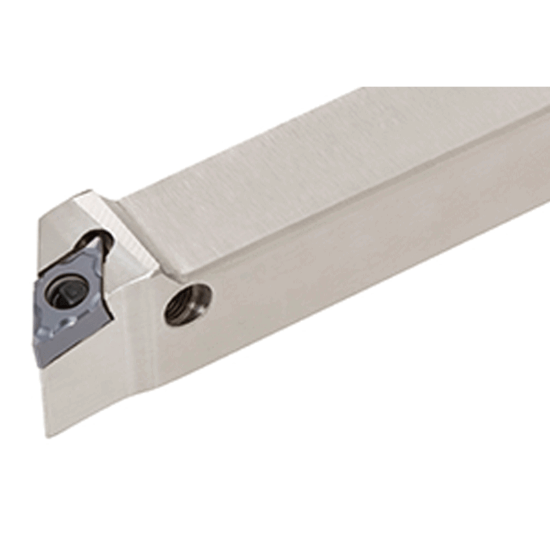

Picture of TUNGALOY JPDJ2XL1212X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JPDJ2XL1212X07 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JPDJ2XL1212X07

ISO: JPDJ2XL1212X07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712883
Delivery date: 3-5 days
$116.05

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Dimensional Specifications
Clearance Angle 30.0°
Overall Len 4.7244 120.00MM
Insert Size Ic 07 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.4724 12.00MM
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DX
Hand R/L Left
Inter/Extern External
