  • TUNGALOY JPDJ2XL102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

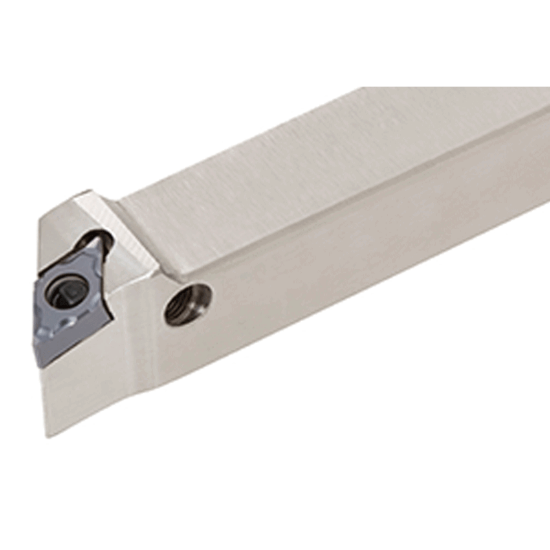

Picture of TUNGALOY JPDJ2XL102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY JPDJ2XL102 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: JPDJ2XL102

ISO: JPDJ2XL102

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712891
Delivery date: 3-5 days
$117.45

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.7500 120.65MM
Clearance Angle 30.0°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 93°
Insert Size Ic 07 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style DX
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
