  • TUNGALOY JPDJ2XL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

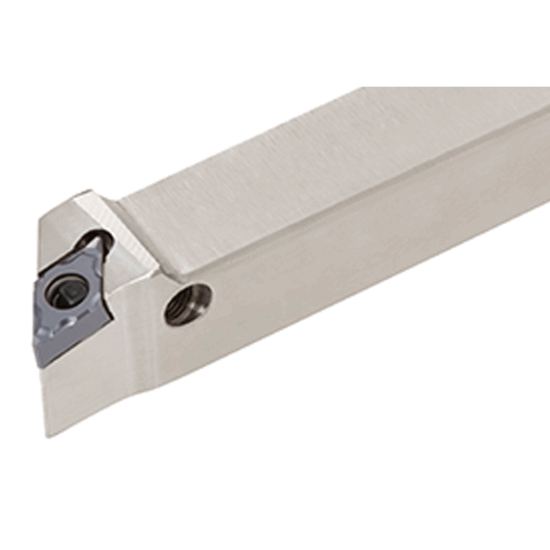

Picture of TUNGALOY JPDJ2XL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JPDJ2XL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JPDJ2XL082

ISO: JPDJ2XL082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712889
Delivery date: 3-5 days
$116.05

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Turning, Swiss
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.7500 120.65MM
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Insert Size Ic 07 "22"
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Insert Style DX
