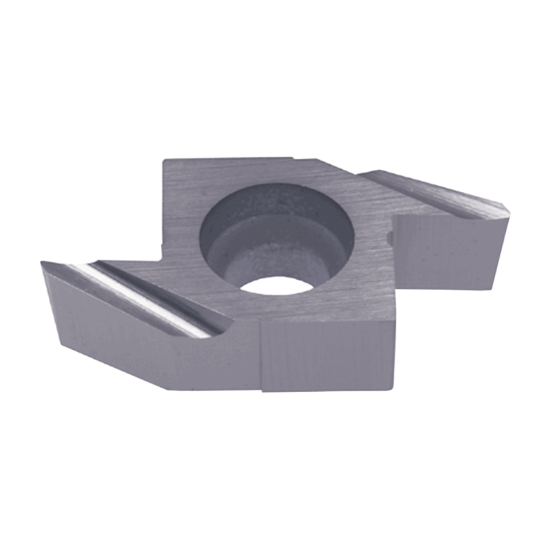

Picture of TUNGALOY J10ER005BF NS9530 Back Turning, Swiss Insert 60.0° 0.002 Corner Radius

TUNGALOY J10ER005BF NS9530 Back Turning, Swiss Insert 60.0° 0.002 Corner Radius

ANSI: J10ER005BF NS9530

ISO: J10ER005BF NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723930
Delivery date: 3-5 days
$16.71

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Application Turning Insert, Back Turning Insert, Swiss
Package Size 10
Insert/Tool Insert
Grade NS9530
Made In USA No
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0020 0.05MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Insert Size Ic ER
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Z Shape
Insert Style J1
